自动调节空气处理单元

所属品牌：阿特拉斯·科普柯Atlas Copco

产品型号：MIDI

Atlas阿特拉斯MIDI空气处理单元，适用于超过 90% 的 Atlas Copco 工具，是装配工具、冲击机具、钻机、下料机和 Turbo 及以下系列打磨机。这款atlas空气处理单元可根据气流需求进行自动调节，并确保马达在所有流量下均可获得充足的润滑油供应。

点我询价

商品描述
商品询价热度

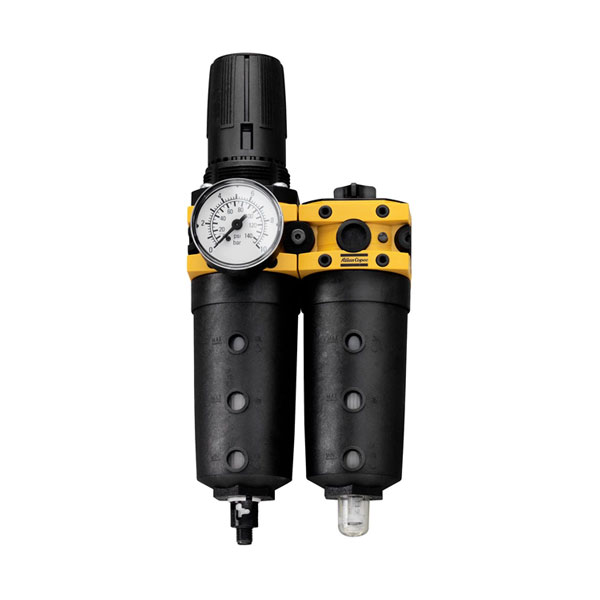

Atlas阿特拉斯MIDI空气处理单元

阿特拉斯MIDI空气处理单元

Atlas MIDI空气处理单元优势特点

低压降

容易安装

操作简便

设计紧凑

尽可能减少能量损失

自动调节的纳米加油器

使用中和加压时可添加润滑油

叶片马达使用寿命延长可达三倍

过滤器可减少气动元件中的水和污物

阿特拉斯MIDI空气处理单元各型号技术参数

型号	ID	气流值	连接类型	温度	工作压力	温度	工作压力	螺纹尺寸	重量	容器	过滤冷凝水排放	最大冷凝水排量	最大油容量	气流最小值	经济气流 (0.2 bar ∆P)	经济气流 (3 psi ∆P)	Fixed text
MIDI-REG-1/2-BSP	4221000141	83 l/s	BSP	122 °F	232 psig	-10 °C	1.4 psig	1/2	1.08 lb
MIDI-FRL-1/2-BSP	4221000165	65 l/s	BSP	122 °F	232 psig	-10 °C	21.8 psig	1/2	2.55 lb	Plastic, PC with PA bowl guard	Automatic	1.05	2.7
MIDI-F/R-1/2-NPT	4221000158	83 l/s	NPT	122 °F	232 psig	-10 °C	21.8 psig	1/2	1.48 lb	Plastic, PC with PA bowl guard	Automatic	1.05
MIDI-OPTIMIZER-3/4-FRD-M/S	9093002153	55 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	3/4	1.1 kg	Polymer, plastic insert	Manual/semi auto	60	90	0 l/s	31 l/s
MIDI-F/R-1/2-BSP	4221000157	83 l/s	BSP	122 °F	232 psig	-10 °C	21.8 psig	1/2	1.46 lb	Plastic, PC with PA bowl guard	Automatic	1.05
MIDI-LUB-1/2-NPT	4221000150	134 l/s	NPT	122 °F	232 psig	-10 °C	1.4 psig	1/2	0.92 lb	Plastic, PC with PA bowl guard			2.7	1.17 l/s
MIDI-LUB-1/2-BSP	4221000149	134 l/s	BSP	122 °F	232 psig	-10 °C	1.4 psig	1/2	0.91 lb	Plastic, PC with PA bowl guard			2.7	1.17 l/s
MIDI-OPTIMIZER-3/4-FRD-A	9093002152	55 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	3/4	1.1 kg	Polymer, plastic insert	Automatic	60	90	0 l/s	31 l/s
MIDI-FRL-1/2-NPT	4221000166	65 l/s	NPT	122 °F	232 psig	-10 °C	21.8 psig	1/2	2.58 lb	Plastic, PC with PA bowl guard	Automatic	1.05	2.7
MIDI-FIL-1/2-NPT	4221000134	59 l/s	NPT	122 °F	232 psig	-10 °C	21.8 psig	1/2	1.01 lb	Plastic, PC with PA bowl guard	Automatic	1.05
MIDI-REG-1/2-NPT	4221000142	83 l/s	NPT	122 °F	232 psig	-10 °C	1.4 psig	1/2	1.11 lb
MIDI-FIL-1/2-BSP	4221000133	59 l/s	BSP	122 °F	232 psig	-10 °C	21.8 psig	1/2	0.94 lb	Plastic, PC with PA bowl guard	Automatic	1.05
MIDI-OPTIMIZER-FRD-A-NPT	9093002118	116	NPT	140 °F	116 psig	35	7.2 psig	1/2	2.2 lb	Polymer, plastic insert	Automatic	2	3	0		66 cfm
MIDI-OPTIMIZER-FRD-M/S-EP-NPT	9093002138	116	NPT	140 °F	116 psig	35	7.2 psig	1/2	2.2 lb	Polymer, plastic insert	Manual/semi auto	2	3	0		66 cfm
MIDI-OPTIMIZER-3/4-FIL-A	9093002140	117 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	3/4	0.3 kg	Polymer, plastic insert	Automatic	60		0 l/s
MIDI-OPTIMIZER-FRD-A-EP-NPT	9093002137	55 l/s	NPT	140 °F	116 psig	2 °C	7.2 psig	1/2	2.2 lb	Polymer, plastic insert	Automatic	2	3	0 l/s		66 cfm	For Ordering No. see Accessories
MIDI-OPTIMIZER-3/4-FIL-M/S	9093002141	117 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	3/4	0.3 kg	Polymer, plastic insert	Manual/semi auto	60		0 l/s
MIDI-OPTIMIZER-3/4-FR-M/S-HP	9093002148	90 l/s	BSP	60 °C	232 psig	2 °C	7.2 psig	3/4	0.5 kg	Polymer, plastic insert	Manual/semi auto	60		0 l/s
MIDI-OPTIMIZER-REG-HP	9093002130	97 l/s	BSP	60 °C	232 psig	-40 °C	7.2 psig	1/2	0.35 kg					0 l/s
MIDI-OPTIMIZER-FIL-M/S	9093002102	117 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	1/2	0.3 kg	Polymer, plastic insert	Manual/semi auto	60		0 l/s
MIDI-OPTIMIZER-3/4-FRD-A	9093002150	55 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	3/4	1 kg	Polymer, plastic insert	Automatic	60	90	0 l/s	31 l/s
MIDI-OPTIMIZER-REG-LP	9093002106	97 l/s	BSP	60 °C	116 psig	-40 °C	7.2 psig	1/2	0.35 kg					0 l/s
MIDI-OPTIMIZER-3/4-REG-LP	9093002143	97 l/s	BSP	60 °C	116 psig	-40 °C	7.2 psig	3/4	0.35 kg					0 l/s
MIDI-OPTIMIZER-FRD-M/S-NPT	9093002119	116	NPT	140 °F	116 psig	35	7.2 psig	1/2	2.2 lb	Polymer, plastic insert	Manual/semi auto	2	3	0		66 cfm
MIDI-OPTIMIZER-FIL-A	9093002101	117 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	1/2	0.3 kg	Polymer, plastic insert	Automatic	60		0 l/s
MIDI-OPTIMIZER-3/4-FRD-M/S	9093002151	55 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	3/4	1 kg	Polymer, plastic insert	Manual/semi auto	60	90	0 l/s	31 l/s
MIDI-OPTIMIZER-REG-NPT	9093002107	206	NPT	140 °F	116 psig	-40	7.2 psig	1/2	0.77 lb					0
MIDI-OPTIMIZER-FRD-A-EP	9093002135	55 l/s	BSP	60 °C	232 psig	2 °C	7.2 psig	1/2	1 kg	Polymer, plastic insert	Automatic	60	90	0 l/s	31 l/s		For Ordering No. see Accessories
MIDI-OPTIMIZER-3/4-FRD-A-EP	9093002155	55 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	3/4	1 kg	Polymer, plastic insert	Automatic	60	90	0 l/s	31 l/s		For Ordering No. see Accessories
MIDI-OPTIMIZER-3/4-FR-M/S	9093002147	90 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	3/4	0.5 kg	Polymer, plastic insert	Manual/semi auto	60		0 l/s
MIDI-OPTIMIZER-FR-A-HP	9093002132	90 l/s	BSP	60 °C	232 psig	2 °C	7.2 psig	1/2	0.5 kg	Polymer, plastic insert	Automatic	60		0 l/s
MIDI-OPTIMIZER-3/4-FRD-M/S-EP	9093002156	55 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	3/4	1 kg	Polymer, plastic insert	Manual/semi auto	60	90	0 l/s	31 l/s
MIDI-OPTIMIZER-FRD-A	9093002116	55 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	1/2	1 kg	Polymer, plastic insert	Automatic	60	90	0 l/s	31 l/s
MIDI-OPTIMIZER-FRD-M/S	9093002125	55 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	1/2	1.1 kg	Polymer, plastic insert	Manual/semi auto	60	90	0 l/s	31 l/s
MIDI-OPTIMIZER-3/4-REG-HP	9093002144	97 l/s	BSP	60 °C	232 psig	-40 °C	7.2 psig	3/4	0.35 kg					0 l/s
MIDI-OPTIMIZER-3/4-DIM	9093002145	120 l/s	BSP	60 °C	116 psig	-40 °C	7.2 psig	3/4	0.3 kg	Polymer, plastic insert			90	0 l/s	31 l/s
MIDI-OPTIMIZER-FR-A	9093002112	90 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	1/2	0.5 kg	Polymer, plastic insert	Automatic	60		0 l/s
MIDI-OPTIMIZER-DIM-NPT	9093002111	254	NPT	140 °F	116 psig	-40	7.2 psig	1/2	0.66 lb	Polymer, plastic insert			3	0		66 cfm
MIDI-OPTIMIZER-REG	9093002105	97 l/s	BSP	60 °C	116 psig	-40 °C	7.2 psig	1/2	0.35 kg					0 l/s
MIDI-OPTIMIZER-FIL-M/S-NPT	9093002104	248	NPT	140 °F	116 psig	35	7.2 psig	1/2	0.66 lb	Polymer, plastic insert	Automatic	2		0
MIDI-OPTIMIZER-FRD-A-NPT	9093002126	116	NPT	140 °F	116 psig	35	7.2 psig	1/2	2.4 lb	Polymer, plastic insert	Automatic	2	3	0		66 cfm
MIDI-OPTIMIZER-3/4-REG	9093002142	97 l/s	BSP	60 °C	116 psig	-40 °C	7.2 psig	3/4	0.35 kg					0 l/s
MIDI-OPTIMIZER-DIM	9093002110	120 l/s	BSP	60 °C	116 psig	-40 °C	7.2 psig	1/2	0.3 kg	Polymer, plastic insert			90		31 l/s
MIDI-OPTIMIZER-FR-A-NPT	9093002114	190	NPT	140 °F	116 psig	35	7.2 psig	1/2	1.1 lb	Polymer, plastic insert	Automatic	2		0
MIDI-OPTIMIZER-DIM-EP	9093002133	120 l/s	BSP	60 °C	116 psig	-40 °C	7.2 psig	1/2	0.3 kg	Polymer, plastic insert			90	0 l/s	31 l/s
MIDI-OPTIMIZER-FRD-A	9093002124	55 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	1/2	1.1 kg	Polymer, plastic insert	Automatic	60	90	0 l/s	31 l/s
MIDI-OPTIMIZER-FIL-A-NPT	9093002103	248	NPT	140 °F	116 psig	35	7.2 psig	1/2	0.66 lb	Polymer, plastic insert	Manual/semi auto	2		0
MIDI-OPTIMIZER-DIM-EP-NPT	9093002134	254	NPT	140 °F	116 psig	-40	7.2 psig	1/2	0.66 lb	Polymer, plastic insert			3	0		66 cfm
MIDI-OPTIMIZER-FRD-M/S-NPT	9093002127	116	NPT	140 °F	116 psig	35	7.2 psig	1/2	2.4 lb	Polymer, plastic insert	Manual/semi auto	2	3	0		66 cfm
MIDI-OPTIMIZER-FRD-M/S-EP	9093002136	55 l/s	BSP	60 °C	232 psig	2 °C	7.2 psig	1/2	1 kg	Polymer, plastic insert	Manual/semi auto	60	90	0 l/s	31 l/s
MIDI-OPTIMIZER-3/4-DIM-EP	9093002154	120 l/s	BSP	60 °C	116 psig	-40 °C	7.2 psig	3/4	0.3 kg	Polymer, plastic insert			90	0 l/s	31 l/s
MIDI-OPTIMIZER-3/4-FR-A-HP	9093002149	90 l/s	BSP	60 °C	232 psig	2 °C	7.2 psig	3/4	0.5 kg	Polymer, plastic insert	Automatic	60		0 l/s
MIDI-OPTIMIZER-3/4-FR-A	9093002146	90 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	3/4	0.5 kg	Polymer, plastic insert	Automatic	60		0 l/s
MIDI-OPTIMIZER-FR-M/S	9093002113	90 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	1/2	0.5 kg	Polymer, plastic insert	Manual/semi auto	60		0 l/s
MIDI-OPTIMIZER-FR-M/S-HP	9093002131	90 l/s	BSP	60 °C	232 psig	2 °C	7.2 psig	1/2	0.5 kg	Polymer, plastic insert	Manual/semi auto	60		0 l/s
MIDI-OPTIMIZER-FRD-M/S	9093002117	55 l/s	BSP	60 °C	116 psig	2 °C	7.2 psig	1/2	1 kg	Polymer, plastic insert	Manual/semi auto	60	90	0 l/s	31 l/s
MIDI-OPTIMIZER-FR-M/S-NPT	9093002115	190	NPT	140 °F	116 psig	35	7.2 psig	1/2	1.1 lb	Polymer, plastic insert	Manual/semi auto	2		0
MIDI-OPTIMIZER-REG-LP-NPT	9093002108	206	NPT	140 °F	116 psig	-40	7.2 psig	1/2	0.77 lb					0
