标准联轴器
所属品牌：阿特拉斯·科普柯Atlas Copco
产品型号：QIC
Atlas阿特拉斯QIC标准联轴器是一款可以单手操作的、且具有高气流性能的联轴器，采用硬化钢材质，无泄漏设计，适用于配工具、钻头和小型磨床。该联轴器设计采用小压降，可减少能源消耗，具有高气流，可确保工具具有充分的动力。
点我询价
- 商品描述
- 商品询价热度

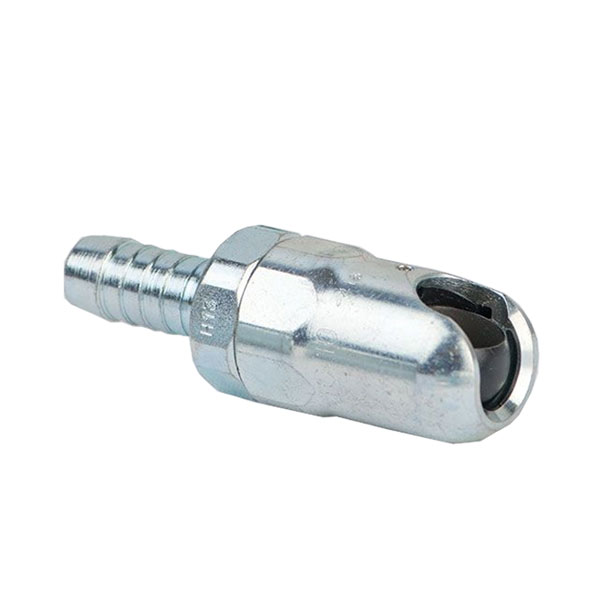

Atlas阿特拉斯QIC标准联轴器
Atlas QIC标准联轴器优势特点
气流大
坚固耐用
使用寿命长
提高工作效率
外形小巧，重量轻
单手操作、方便快捷
阿特拉斯QIC标准联轴器各型号技术参数
型号 | ID | 连接 | 螺纹尺寸 | 工作压力 | 流量 (0.5 bar ΔP) | 流量 (7 psi ΔP) | 软管尺寸 |
|---|---|---|---|---|---|---|---|
| QIC-15-M10 | 8202130442 | Male | 3/8 BSP | 144 psi | 48 l/s | 101 cfm | |
| QIC-15-H13 | 8202130418 | Hose | 144 psi | 48 l/s | 101 cfm | 1/2 inch | |
| QIC-08-F08 | 8202130053 | Female | 1/4 BSP | 230 psi | 12 l/s | 26 cfm | |
| QIC-08-H08 | 8202130012 | Hose | 230 psi | 12 l/s | 26 cfm | 5/16 inch | |
| QIC-10-F08 | 8202130269 | Female | 1/4 BSP | 230 psi | 24 l/s | 50 cfm | |
| QIC-10-M10 | 8202130244 | Male | 3/8 BSP | 230 psi | 24 l/s | 50 cfm | |
| QIC-10-H06 | 8202130202 | Hose | 230 psi | 24 l/s | 50 cfm | 1/4 inch | |
| QIC-15-F15 | 8202130467 | Female | 1/2 BSP | 144 psi | 48 l/s | 101 cfm | |
| QIC-08-H10 | 8202130020 | Hose | 230 psi | 12 l/s | 26 cfm | 3/8 inch | |
| QIC-10-H10 | 8202130228 | Hose | 230 psi | 24 l/s | 50 cfm | 3/8 inch | |
| QIC-10-H13 | 8202130234 | Hose | 230 psi | 24 l/s | 50 cfm | 1/2 inch | |
| QIC-15-H16 | 8202130426 | Hose | 144 psi | 48 l/s | 101 cfm | 5/8 inch | |
| QIC-08-M08 | 8202130038 | Male | 1/4 BSP | 230 psi | 12 l/s | 26 cfm | |
| QIC-08-F10 | 8202130061 | Female | 3/8 BSP | 230 psi | 12 l/s | 26 cfm | |
| QIC-08-M10 | 8202130046 | Male | 3/8 BSP | 230 psi | 12 l/s | 26 cfm | |
| QIC-10-H08 | 8202130210 | Hose | 230 psi | 24 l/s | 50 cfm | 5/16 inch | |
| QIC-15-M15 | 8202130459 | Male | 1/2 BSP | 144 psi | 48 l/s | 101 cfm | |
| QIC-15-H10 | 8202130400 | Hose | 144 psi | 48 l/s | 101 cfm | 3/8 inch | |
| QIC-10-MT15 | 8202130251 | Male | 1/2 BSPT | 230 psi | 24 l/s | 50 cfm | |
| QIC-08-H06 | 8202130004 | Hose | 230 psi | 12 l/s | 26 cfm | 1/4 inch | |
| QIC-15-M08 | 8202130434 | Male | 1/4 BSP | 144 psi | 48 l/s | 101 cfm | |
| QIC-10-M08 | 8202130236 | Male | 1/4 BSP | 230 psi | 24 l/s | 50 cfm |
